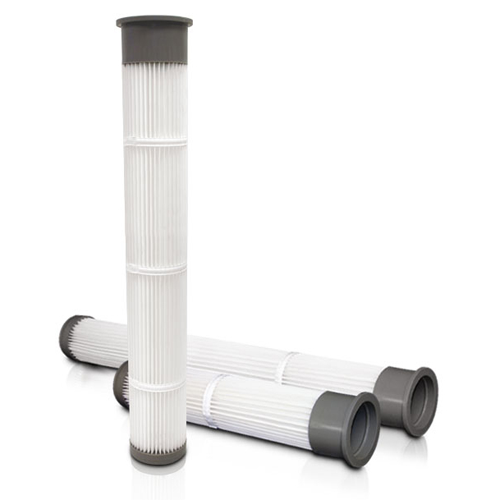

Pleated filter bags/ cartridges, are used in industry where more volume of air is to
be handled, is a small area of dust collection. Pleated filter bags/ cartridges offer the solution
by giving more air in compact areas.

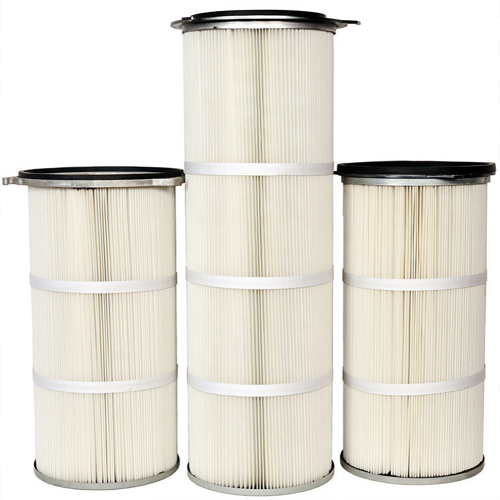

Cartridge filters are made from the latest technology SPUN BONDED polyester media, which offers unique advantage of high strength, air flow along with good efficiency.
Cartridge filters are recommended for use in the dust collection application where the dust load in the raw gas is less than 10 gm/NM3, as the pleat depth in the Cartridges of size 225 & 325 mm dia, respectively. For handling dust load greater than above mentioned pleated bags are the solution with lesser pleated depth, the relation between the pleated depth and dust load is inverse, higher the dust load, it is recommended to have less pleat depth.
These filters are generally made from the latest technology SPUN BONDED polyester media, which offers unique advantage of high strength, air flow along with good efficiency.
Pleated filter bags are recommended for use in the dust collection application where the dust load in the raw gas exceeds 10 gm/NM3. Nature of dust also plays very important part in deciding filter area and type of media.
The density of the dust, is the crucial parameter, according to which, various Air-to-cloth (ACR) ratio has been set as the light dust particle requires low can velocity as compared to heavy dust particles.
If you require the detailed information about our product range, you can download our brochure here.
